SuperBrute - a new standard
Advantages:
  • Removable, integrated check valve does not diminish pump performance
  • Eliminates the expense of an inline check valve
  • Prevents thermo-siphoning
  • Easily match pumpGrundfos SuperBrute performance to system requirements
  • 3-year warranty


Technical Data:
Flow Range: 0 - 17 U.S. GPM
Head Range: 0 - 19 Feet
Motor: 2 pole, Single Phase
Max. Fluid Temperature Closed System: 230°F (110°C)
Min. Fluid Temperature for UP15: 36°F (2°C)

Minimum Pressure Temp Requirements:



Fluid Temp. 230°F (110°C) 190°F (88°C) 140°F (60°C)
Inlet Pressure 15.6 psi 4.0 psi 1.3 psi




Ambient Air Temp
90°F (32°C) 130°F (55°C) 140°F (60°C) 160°F (71°C) 175°F (79°C)
Maximum Water Temp
230°F (110°C) 220°F (104°C) 210°F (99°C) 190°F (88°C) 175°F (79°C)


Product Data:

MODEL AMPS WATTS CAPACITOR
UPS15-58F High .75 89 10mF/180V
(115V) MED .66 80 ---
1/25 HP LOW .55 60 ---

Grundfos SuperBrute diagram view
Shipping Connection
Types and Sizes:
Flange: (2) 1/2" Dia Bolt Holes

Weight (Lbs.): 7 1/4

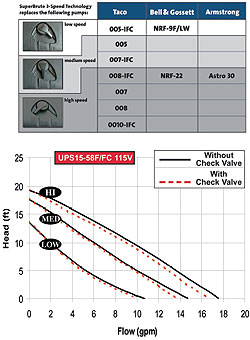

Competitive Cross Reference

Competitive Cross Reference

Materias of Construction:


Description Material
Inlet Cone, Bearing Plate, Bearing Retainers, Rotor Can, Rotor Cladding, Shaft Retainer 304 Stainless Steel
Stator Housing Aluminum
Shaft, Upper & Lower Radial Bearings Aluminum Oxide Ceramic
Thrust Bearing Metal Impregnated Carbon
Check Valve ACETAL With 302 Stainless Steel Spring & Nitrile Rubber Seats
Pump Housing (Volute) Cast Iron
O’Ring & Gaskets EP (Ethylene Propylene Rubber)
Impeller PES Composite (30% Glass Filled)
Terminal Box Noryl®
Download Product Literatures


> Maintenance-Free Circulators Installation & Operating Instructions
> "Super Brute" 3-Speed Circulator Sales Brochure
