| The EZ Boost™ pump can be selected by following 3

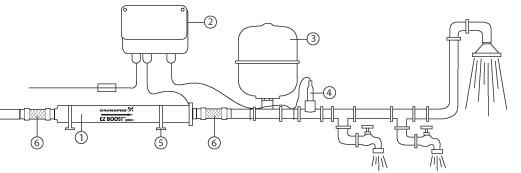

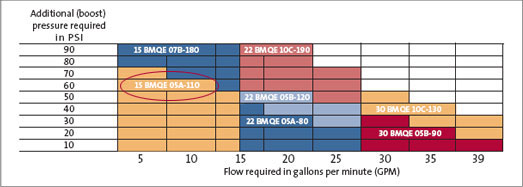

easy steps: 1. Determine the pressure needed at your maximum flow 2. Determine your current available pressure (inlet pressure) 3. Select a pump from the chart that gives you the difference (desired pressure - available pressure = difference) Example: I need maximum 15 gpm with a total pressure of 60 psi. My current pressure available is 20 psi, therefore, I need a boost of 40 psi. The correct selection would be a Model 15 BMQE 05A - 110. (See highlighted selection in chart below)  Typical Application
|
||||||||||||
